Swimming Pool Pumps Manufacturer STP series
STP Series
Model No: STP 150, STP 200, STP 300
Application:
STP Series pumps are used in swimming pool, spas, Jacuzzi, bathtubs and cleaning systems.
Features:
Wet ends made of hight reinforced engineering thermal plastic with compact structure and corrosive resistance.
2 inch inlet and outlet
High efficient structure design for diffuser and impeller to get high performance.
Complact Design
Maximum Sucation 1.5mtr.
Motor:
2 Pole induction motor single phase 220-240V/50Hz single phase with thermal protector
F Class insulation
IP55 Protection Class
Built with Thermal protector

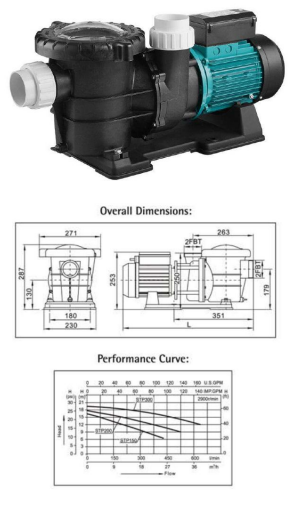

| Model | Power KW/HP | Max head m | Max flow L/min | Fitting size mm | Dimension mm | Wright (kg) |
| STP150 | 1.10/1.50 | 16.5 | 430 | 48.5/50/60.3/63 | 600x280x345 | 14 |
| STP200 | 1.50/2.00 | 18 | 310 | 48.5/50/60.3/63 | 600x280x345 | 15.5 |
| STP300 | 2.2/3.0 | 19 | 340 | 48.5/50/60.3/63 | 600x280x345 | 18 |
