SQP Series
Model No: SQP75, SQP100
Application:
SQP Series pumps are used in swimming pool, spas, Jacuzzi, bathtubs and cleaning systems.
Features:
Self Priming
Wet ends made of hight reinforced engineering thermal plastic with compact structure and corrosive resistance.
1.5 inch inlet and outlet
High efficient structure design for diffuser and impeller to get high performance.
Complact Design
Maximum Sucation 1.5mtr.
Motor:
2 pole induction motor single phase 220-240V/50Hz single phase with thermal protector
F Class insulation
IP55 Protection Class
Built with Thermal protector

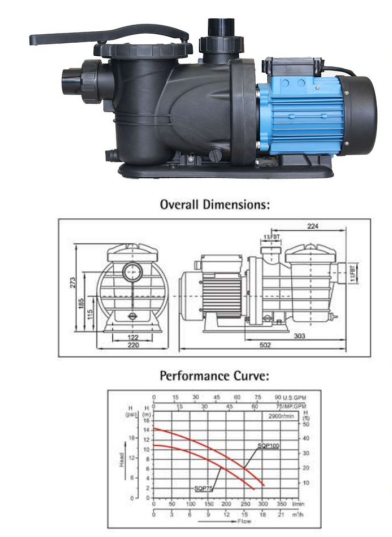

Model | Power KW /HP | MAX head m | Max flow L/min | Fittting size mm | Dimension mm | Weight(Kg) |
SQP75 | 0.55/0.75 | 11 | 280 | 48.5 or 50 | 535*250*330 | 10.6 |
SQP100 | 0.75/1.0 | 14.5 | 310 | 48.5 or 50 | 535*250*330 | 11 |
