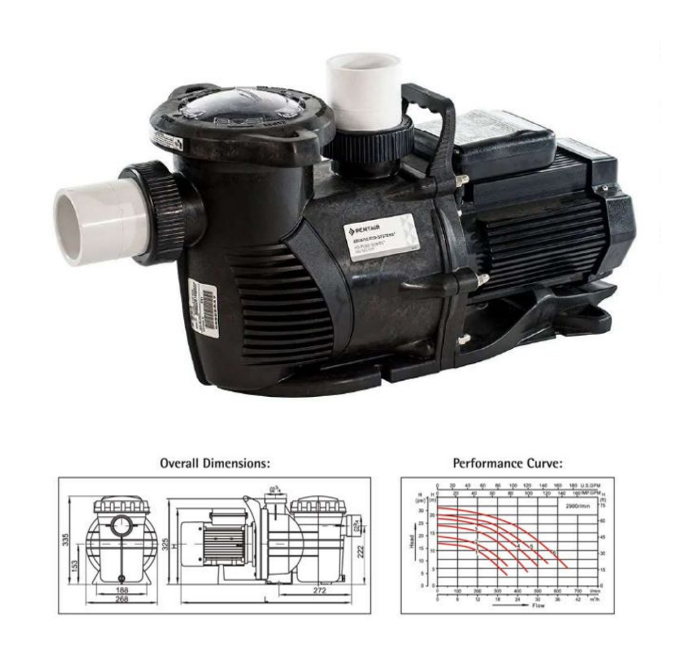

Swimming Pool Pumps SQP75
SWIM-2 Series
Model No: SWIM 2-150, SWIM 2-200, SWIM 2-250, SWIM 2-300, SWIM 2-400
Application:
Features:
Self priming
Wet ends made of high reinforced engineering thermal plastic with compact structure and corrosive resistance
2 inch inlet and outlet
High efficient structure design for diffuser and Impeller to get high performance.
Compact design
Maximum Sucation 3.0 mtr.
Motor:
2 pole induction motor single phase 220-240V/50Hz single phase with thermal protector
F Class insulation
IP55 Protection Class
Built with Thermal protector
| Model | Power KW/HP | Max head m | Max flow L/min | Fitting size mm | Dimension mm | Weight(kg) |
| Swim 2-150 | 1.1/1.5 | 14 | 350 | 48.5or 50 | 640x290x385 | 8.9 |
| SWIM 2-200 | 1.5/2.0 | 17 | 450 | 48.5or 50 | 640x290x385 | 9.5 |
| SWIM 2-250 | 1.85/2.5 | 19 | 500 | 48.5or 50 | 640x290x385 | 10.5 |
| SWIM 2-300 | 2.2/3.0 | 20 | 550 | 48.5/50/60.3.63 | 640x290x385 | 14 |
| SWIM 2-400 | 3.0/4.0 | 22 | 650 | 48.5/50/60.3.63 | 640x290x385 | 15.5 |
